Edit Spatial Index

Editing a spatial index in the load definition file in the Load Definition File editor consists of the following steps:

Step 1

The first step is to select the Spatial Index task in the INDEXES task bar along the left side of the load definition file editor to activate the SPATIAL INDEXES page if it isn't already activated.

Step 2

The second step is to either double-click the spatial index to be edited or select the spatial index and click the Edit Index task in the SPATIAL task bar along the right side of the SPATIAL INDEXES page:

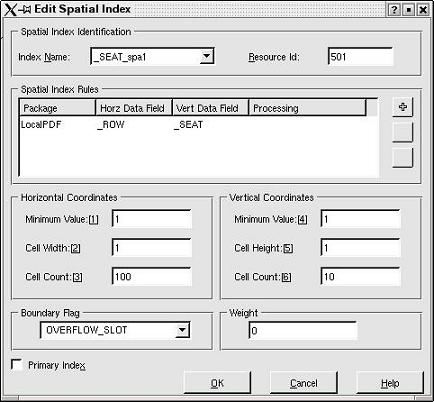

The Edit Spatial Index dialog box will appear:

The Edit Spatial Index dialog box is composed of the following components:

Spatial Index Identification

Component

Description

Index Name

Unique name to identify the index. The drop-down list contains a list of suggested unique names. Either select a name from this list or you can specify your own.

Resource ID

Unique integer to identify the index. A resource id will be automatically assigned to the index when it is created.

Index Rules

Component

Description

Package

Name of the package across which the index is being created.

Horizontal Data Field

Name of the data field across which the index for the rows of the grid is created.

Vertical Data Field

Name of the data field across which the index for the columns of the grid is created.

Processing

Used to support conditional processing of an index on a document by document basis.

(Add)

Use the add button to open the Add Spatial Index Rules dialog box.

(Delete)

Select an index rule and click the delete button to remove an index rule from the list.

(Edit)

Select an index rule and click the edit button to open the Edit Spatial Index Rules dialog box.

Horizontal Coordinates

Component

Description

Minimum Value

The lowest horizontal coordinate value for the grid.

Cell Width

Delta or width of an individual grid cell.

Cell Count

Number of cells in one horizontal row of the grid.

Vertical Coordinates

Component

Description

Minimum Value

The lowest vertical coordinate value for the grid.

Cell Height

Delta or height of an individual grid cell.

Cell Count

Number of cells in one vertical column of the grid.

Boundary Flag

Component

Description

Boundary Flags

Select how values that fall below the base value or above the grid limits are handled.

Weight

Component

Description

Weight

Applied to results returned using this index.

Primary Index

Component

Description

Primary Index

If this box is checked, the index will be set as the primary index for all packages defined in the Index Rules.

Step 3

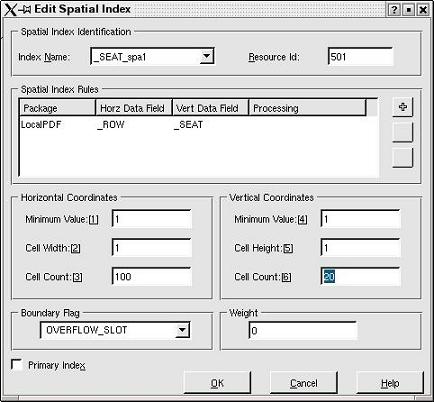

The third step is to edit the information that needs to be changed. In this case the vertical cell count has been changed:

After the information has been edited, click the OK button to apply the changes.

The spatial index has been edited.
