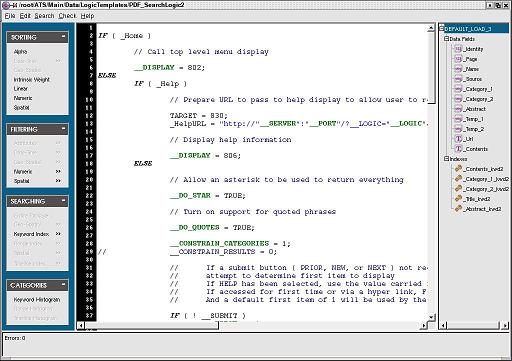

The Logic Template Editor allows you to define the contents of a Logic Template.

The task bars along the left side of the logic template editor allow you to select commands to be added to the logic template. Simply place the cursor in the logic template editor where you would like the command to be inserted, select the command, fill in the arguments for the particular command and it will be inserted into the logic template. Some of the commands will not be enabled due to their dependancies on either data fields or indexes defined in the related load definition file.

The tree along the right side of the logic template editor displays the data fields and indexes defined in the related load definition file if it exists.

The panel along the bottom of the logic template editor displays the error messages or warnings for the particular logic template when a check is done. A check can be done by either pressing the F9 key or selecting the Check->Error Check menu item.

The menus at the top of the logic template editor allow you to save the file, edit settings and search.
